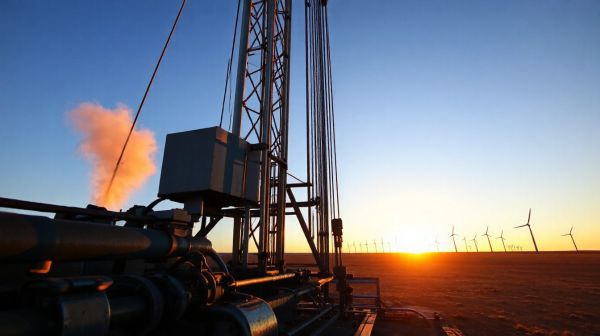

At dawn, the Appalachian Basin is still wrapped in mist when a seasoned engineer steps onto the rig floor. Months of planning have led to this moment: the first steady flow of methane surging through the pipeline. It’s not just fuel-it’s proof that deep beneath our feet, ancient rock can be coaxed into yielding energy, thanks to a blend of precision engineering and geological insight. Tapping into shale gas isn’t brute force. It’s a delicate dance between technology and Earth’s hidden architecture.
Essential Techniques for Tapping Unconventional Reservoirs
Unlike conventional gas fields, where hydrocarbons gather in porous, permeable traps, shale gas remains locked within fine-grained, low-permeability rock. Extracting it demands a sequence of highly coordinated operations. The process begins with site preparation, followed by drilling-first vertically, then transitioning to a horizontal path that can extend several thousand feet through the target layer. This lateral reach maximizes contact with the pay zone, the thin, gas-rich stratum often just 30 to 100 feet thick.
Modern directional drilling enables precise navigation, with curve build rates reaching up to 30° per 100 feet. This allows operators to stay within the optimal zone despite the complex geology. Once drilling is complete, the well is lined with steel casing and sealed with cement to maintain structural integrity and prevent fluid migration into surrounding formations. Next comes perforation: controlled explosive charges create small openings in the casing, forming entry points for fracturing fluid.
The mechanics of horizontal drilling
Horizontal drilling has revolutionized access to unconventional reserves. By extending laterally, a single well can drain a much larger volume of gas than a traditional vertical bore. This technique drastically reduces the number of surface pads needed, lowering environmental impact. The curvature must be carefully managed to avoid equipment stress and ensure smooth tool passage during later stages.
Hydraulic fracturing and permeability
After perforation, the well undergoes multi-stage hydraulic fracturing. High-pressure fluid-typically water, sand, and chemical additives-is injected to create micro-fractures in the shale. The sand, known as a proppant, holds these fissures open, allowing trapped methane to flow into the wellbore. Each stage is isolated and treated sequentially, enabling targeted stimulation along the entire lateral length. This method transforms impermeable rock into a conductive network.
Engineering firms specialized in unconventional extraction often provide integrated shale gas solutions to optimize recovery rates from complex reservoirs.
Precision Engineering and Material Performance Requirements
The success of a shale gas well hinges not only on technique but also on the durability of its components. Tubular goods-the casing and production tubing-must endure extreme mechanical and thermal loads. Materials are selected based on yield strength, which typically ranges between 55 and 125 ksi (thousand pounds per square inch). This ensures the pipes can withstand the intense pressure cycles during fracturing and long-term production.
Operating temperatures can climb to 350°F in deeper formations, demanding alloys with high thermal resistance. Mechanical stress from bending in curved sections further challenges the integrity of connections. Raccords, or couplings, must maintain a seal under combined loads-tension, compression, internal pressure, and bending moments-often tested beyond 100 pressure cycles to meet API RP 5SF and ISO 13679 standards.
OCTG reliability under extreme stress
Oil Country Tubular Goods (OCTG) are more than just pipes-they’re engineered systems. Their performance in tortuous well paths requires precise metallurgy and threading. Premium connections, for instance, use sealing geometries that resist leakage under cyclic stress. Any failure risks not just downtime but potential environmental incidents. That’s why material selection and quality control begin long before the rig starts drilling.
Smart monitoring and corrosion control
To prevent such failures, advanced monitoring systems track pressure, temperature, and mechanical strain in real time. Digital traceability tools, like those in Smart Run Complete systems, log every component’s history and simulate downhole behavior during operations. This allows engineers to anticipate fatigue and corrosion, especially in environments where hydrogen sulfide or brine may accelerate degradation. Early detection of anomalies reduces unplanned shutdowns and extends well life.
For operators, this isn’t just about reliability-it’s about efficiency. Reducing the cost per foot drilled hinges on minimizing non-productive time. Real-time data integration enables faster decision-making and tighter control over operational parameters.
Comparative Analysis of Production Methodologies
Shale gas extraction differs fundamentally from conventional natural gas production. The absence of a free gas-water interface in shale formations, combined with ultra-low permeability, means fluid behavior is far harder to predict. This lack of clarity demands advanced reservoir modeling and adaptive engineering strategies. While conventional fields often rely on natural pressure to drive flow, shale wells require extensive stimulation to initiate production.
Comparing unconventional and traditional extraction
Conventional reservoirs benefit from distinct fluid layers: gas sits above oil, which sits above water. Engineers can estimate volumes and production rates with reasonable accuracy. Shale, however, behaves like a sponge-gas is absorbed in the matrix and dispersed across microscopic pores. There’s no clear boundary, so production declines rapidly after initial flow. Long-term output depends on the effectiveness of fracturing and the connectivity of the fracture network.
Operational efficiency and cost-benefit
The upfront investment in shale development is substantial. Horizontal drilling and multi-stage fracturing are expensive. But the payoff lies in sustained production over years, especially when technology reduces downtime and improves recovery. Innovations like real-time simulation and remote monitoring contribute significantly to this balance. While individual wells may produce less over time than a conventional giant, their cumulative output across a basin can be massive.
| 🔍 Criterion | ⛽ Conventional Gas | 🛠️ Shale Gas |
|---|---|---|
| Reservoir Permeability | High - natural flow pathways | Ultra-low - requires fracturing |
| Drilling Trajectory | Mostly vertical | Vertical + extended horizontal laterals |
| Stimulation Needs | Minimal or none | High-pressure hydraulic fracturing required |
| Fluid Interface Clarity | Clear gas-oil-water separation | No distinct interface - dispersed phases |
- ✅ Conventional gas relies on natural reservoir pressure and permeability.
- ⚙️ Shale gas requires engineered permeability via fracturing.
- 📉 Production decline is steeper in shale but can be managed with optimization.
Basic questions
What happens to the well casing after a hundred pressure cycles?
Well casings are designed to endure repeated pressure fluctuations, often exceeding 100 cycles during fracturing and production. Premium connections and materials with high yield strength ensure structural integrity. Fatigue analysis and adherence to API standards help prevent failures, maintaining long-term well safety and performance.
Can extraction techniques be adapted for urban-adjacent shale deposits?
Yes, but with significant constraints. Operators can use directional drilling to access deposits from a distance, minimizing surface disruption. Noise reduction, traffic control, and robust safety perimeters are essential. Regulatory oversight and community engagement become critical in such sensitive areas.
How long does the transition from drilling to full production typically take?
From the end of drilling to sustained flow, the completion phase-including casing, cementing, perforation, and multi-stage fracturing-can take several weeks. Flowback and initial production testing add more time before the well reaches stable output, usually within one to three months.
